We supply power to CECOEL, the Big Brother of Spain’s grid.

The CECOEL (Electricity Control Centre) controls every inch of the national electricity grid to ensure that the supply is perfect.

This organisation, dependent on Red Eléctrica, has its headquarters in Alcobendas (Madrid).

This operations centre performs real-time supervision of all the generation and transmission facilities of the national electricity system. The CECOEL operates 24/7, 365 days a year.

All the instructions for the correct programming of national electricity production and international exchanges to meet variations in electricity demand are issued from its offices. It also issues the operating instructions for the elements of the transmission grid to ensure that the control variables remain within the established parameters.

CECOEL secures the quality of supply and restores service when an incident occurs. Its maintenance must be optimal, and this is where generators come into play. In the event of a power failure in the grid and the hypothetical risk of a nationwide system outage, emergency power is crucial as part of the safety protocols.

Project development

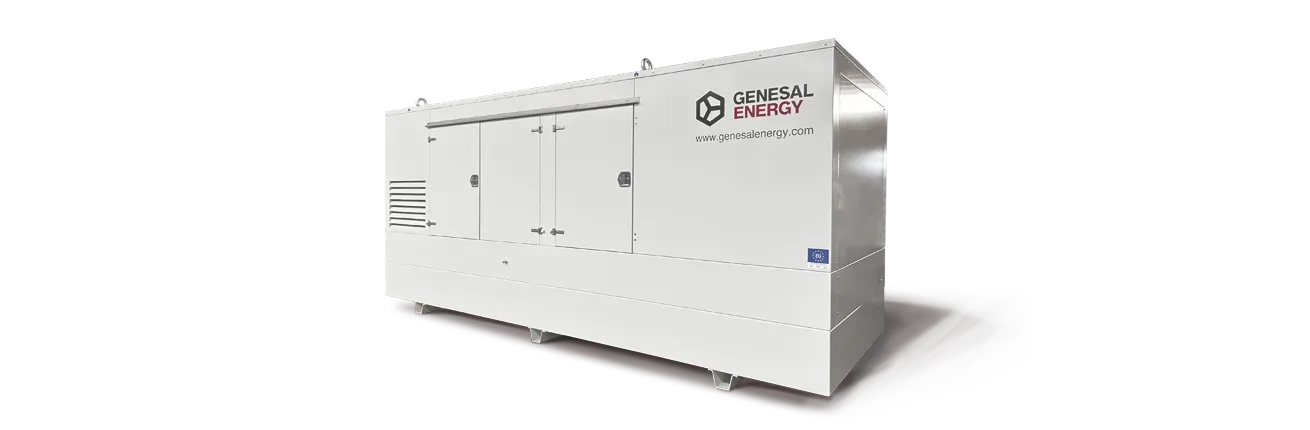

As part of the organisation’s maintenance and modernisation plan, Genesal Energy replaced the existing generator set with a last-generation unit in a new location, further away from the main CECOEL offices. This way, the operation of the generator set would not alter the normal activity of the different departments in the slightest.

Extra fuel tank

Genesal Energy designed, manufactured and supplied this genset and also an additional tank – for which a large crane was required – in order to provide the genset with a high level of autonomy. Transfer pumps and the installation of connecting pipes between the unit and the tank completed the project.

Features

Special soundproofed Canopy. The unit starts by external command.

• Internal tank with liquid collection tray.
• 4000 litres Certified External tank double-walled (steel-steel).
• Redundant automatic fuel transfer system between both tanks.
• Automatic start-up control panel manufactured to customer specification.
• Fuel consumption meter for carbon footprint calculation.
• FATs were carried out with a load bank and in the presence of the client to verify compliance with all the requirements.
