Contingency Gensets
Made-to-measure design of the structure and cooling system of one of our generator sets
At Genesal, we design each generator set with diverse elements; elements which have been thought out and tailor-made according to the client’s specific needs.

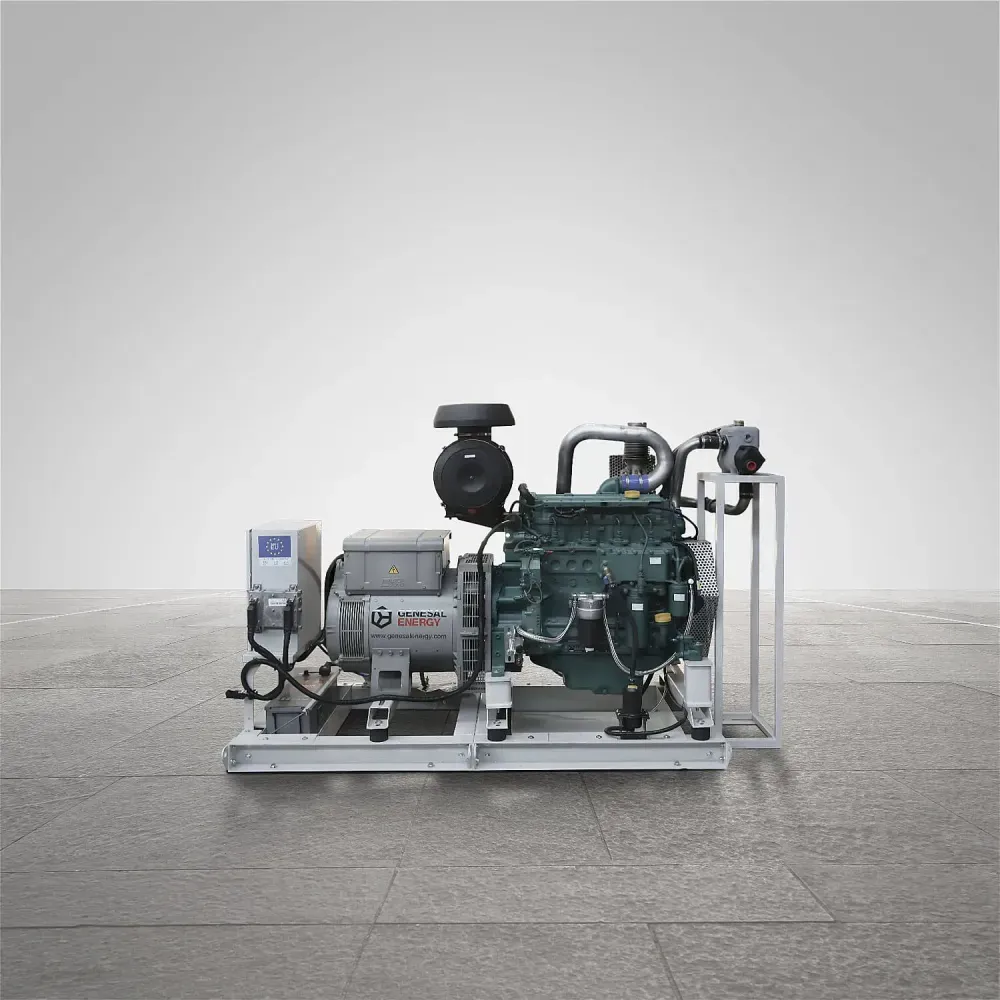

This generator set is a prime example of the made-to-measure structure and cooling design of a genset with particular space requirements. The design allows for the assembly and removal of the genset in its installation area in a simple and practical way.
Features
- Engine cooled via air intercooler in order to optimize space and avoid the need of great air flow.
- Baseframe separated into 3 bodies for an easy installation and disassembly, in order to pass the generator set through a tight space.
- Easily emptied engine and battery liquid collection bund.
Finland
GEN94V
Client's needsThe client needed an emergency generator set, cooled via intercooler, whose split base frame could easily be disassembled in order to lower it by parts into the basement in which it would be located. This way, once installed in the room, it could be put it together following Genesal’s instructions.
Technical data
Execution: Made-to-measure base frame of easy disassembly.
Prime Power: 85 KVA
Standby Power: 94 KVA
Voltage: 400-230V
Frequency: 50 Hz
RPM: 1500 RPM
Engine: VOLVO
Alternator: LEROY SOMER
