Genesal Energy designs tailor-made generator sets for large retail outlets.

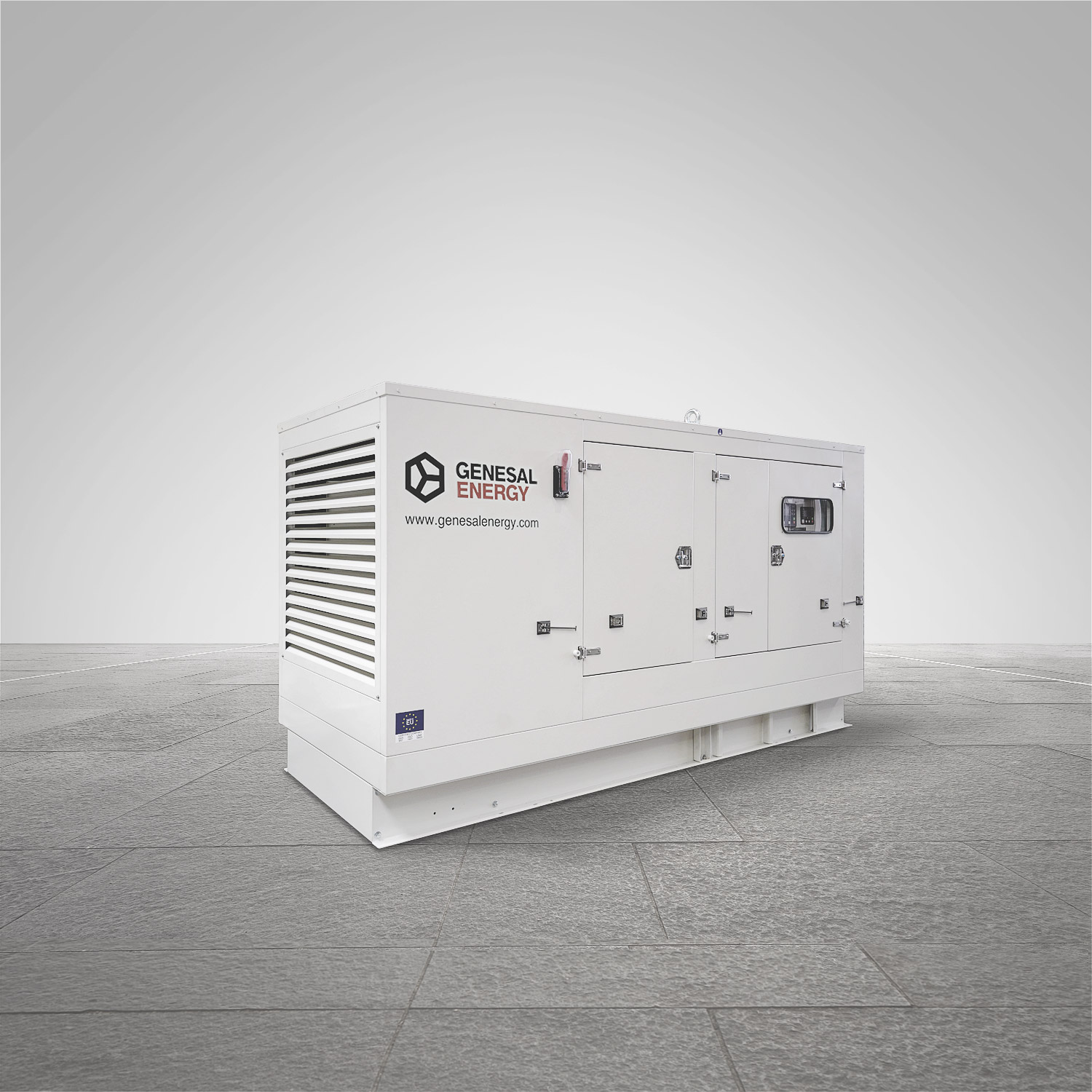

Genesal Energy has designed a generator set to guarantee energy in a shopping centre in Germany and replace its previous generator.

The genset had to be integrated without the need to modify the existing installations and to have a high autonomy and direct connection to an external fuel tank.

With these indications, our engineering team designed a solution with the necessary features to replace the previous equipment without the need for major modifications existing infrastructure. The control unit was located in a special position that allows access without the need to open the side doors, enhancing space and operability at both an operational and aesthetic level, as it also complied with the specific colour and marking requested.

Our proposal included a control unit in a special position which can be accessed without having to open the side doors of the set.

Bearing in mind that shopping centres are spaces where activity does not stop, the electricity supply must be guaranteed at all times to ensure its proper functioning, as a failure in the grid can lead to operational interruptions, affecting customers, generating economic losses and compromising the safety of the premises.

To prevent this kind of situation, this set has an automatic start-up system, ensuring its immediate activation in the event of a failure in the main network. In order to achieve maximum autonomy, the engineering team designed an external fuel tank by means of wall-bushings, allowing a continuous supply without the need for frequent refuelling.

Thanks to this Genesal Energy design, the shopping centre has a reliable solution adapted to its needs, ensuring that, in the event of any grid failure, activity continues without interruption.

Our Engineering Solution

Based on the client’s specific need to replace an old unit with this new one, we designed a unit as similar as possible to the already existing. Our proposal included a control unit in a special position which can be accessed without having to open the side doors of the set. It was installed in the same precise location without having to make any modifications.

Features

• AMF Mains failure start.
• Deif AGC 150 control panel.
• No fuel tank integrated in the base, only liquid collection tray with sensor for leak detection.
• Wall bushings for fuel lines (suction and return) from external tank.
• Protective mesh against animals (at air inlet and outlet).
• Special customer marking.
• Unit painted in the customer’s required colour – RAL 5003.
• Oil extraction hand pump.
• Heating water recirculation pump.
• Fuel pre-filters with water decanter.
• Special batteries.
• Completely covered power supply preventing any access to live parts.
