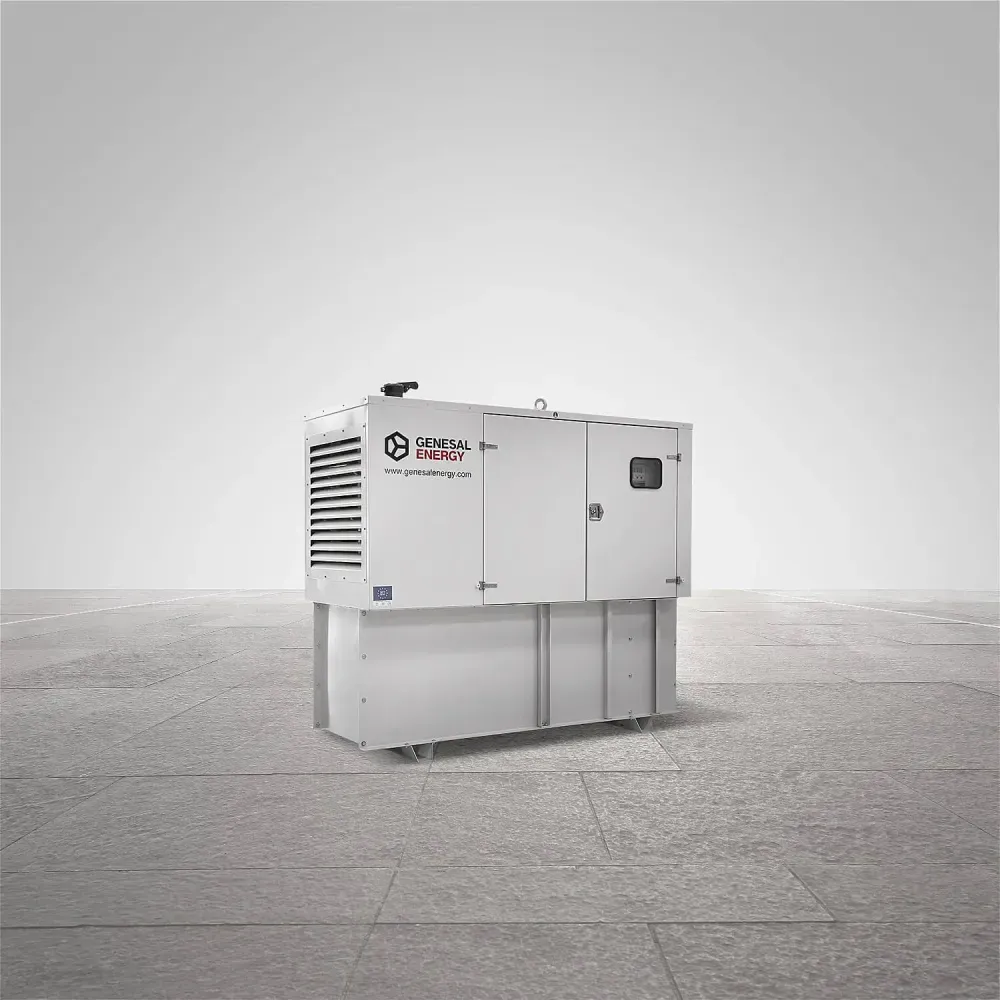

Special generator sets for substations in Zaragoza
Special generator sets for substations in Zaragoza.
A special canopy with sound attenuators and a 1.300 L fuel tank for 72 hours of autonomy – at 75% load – is one of the features of the genset we’ve designed for different substations in Zaragoza
It’s been tailor-made for the client and, as such, the unit contains optionals completely adapted to their needs. Genesal Energy’s engineering team has given their all in the project as each order is unique, and each client is special.
Features
- Special canopy with 1300 litres in the base frame to achieve an autonomy of 72 hours at 75% load. One of them is double-walled.
- The canopy also includes sound attenuators to decrease the sound level to 68 db(A) at 10 metres.
Spain
GEN110YC
Client's needsTo provide power for the auxiliary services of alternating current of the different substations the gensets are intended for. Both genset start-up and shut-down will be carried out by external commands, generated in the panels of the auxiliary services which belong to the client’s substations and sectioning stations.
Technical data
Prime Power: 4×100 kVA
Standby Power: 4×110 kVA
Voltage: 400/230 V
Frequency: 50Hz
Engine: Baudouin
Alternator: Mecc Alte
